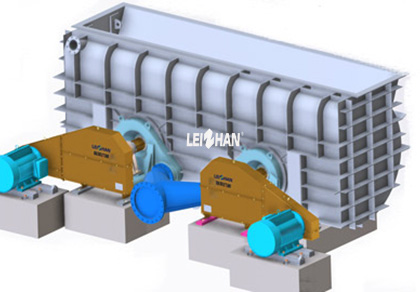

SZS Series Broken Paper Pulper

Specification

Model SZS1 SZS2 SZS3
Diameter of Rotor(mm) 750 1000 1300
Accepts Pulp Inlet(DN) 300 400 500
Volume of Pulp Chest(m³) 5.5-15 14-33 31.5-80
Width of Pulp Chest(mm) 2500-5000 3500-6000 4500-8000
Pulp Concentration(%) 3-5
Mesh size(mm) 10-24
Motor Power(kw) 45-160 90-355 200-630

Description

We are paper pulper manufacturer, providing SZS series broken paper pulper in paper production line. It mainly deals with the broken paper from the press section, calender and reeling part of paper machine.

Features

1. This SZS series broken paper pulper has optimized rotor shape. With the lowest power consumption, it can realize high turbulence effect.
2. With a new pulp tank structure, the contact frequency between the rotor and the pulp has increased in some extent.
3. It also can save energy, operate efficiently and stablty.
4. SZS series broken paper pulper has high suction rate, the friction between fibers has significantly increased, so that the pulping in not only dependent on the mechanical force between the rotor and the sieve plate.

SZS Series Broken Paper Pulper
